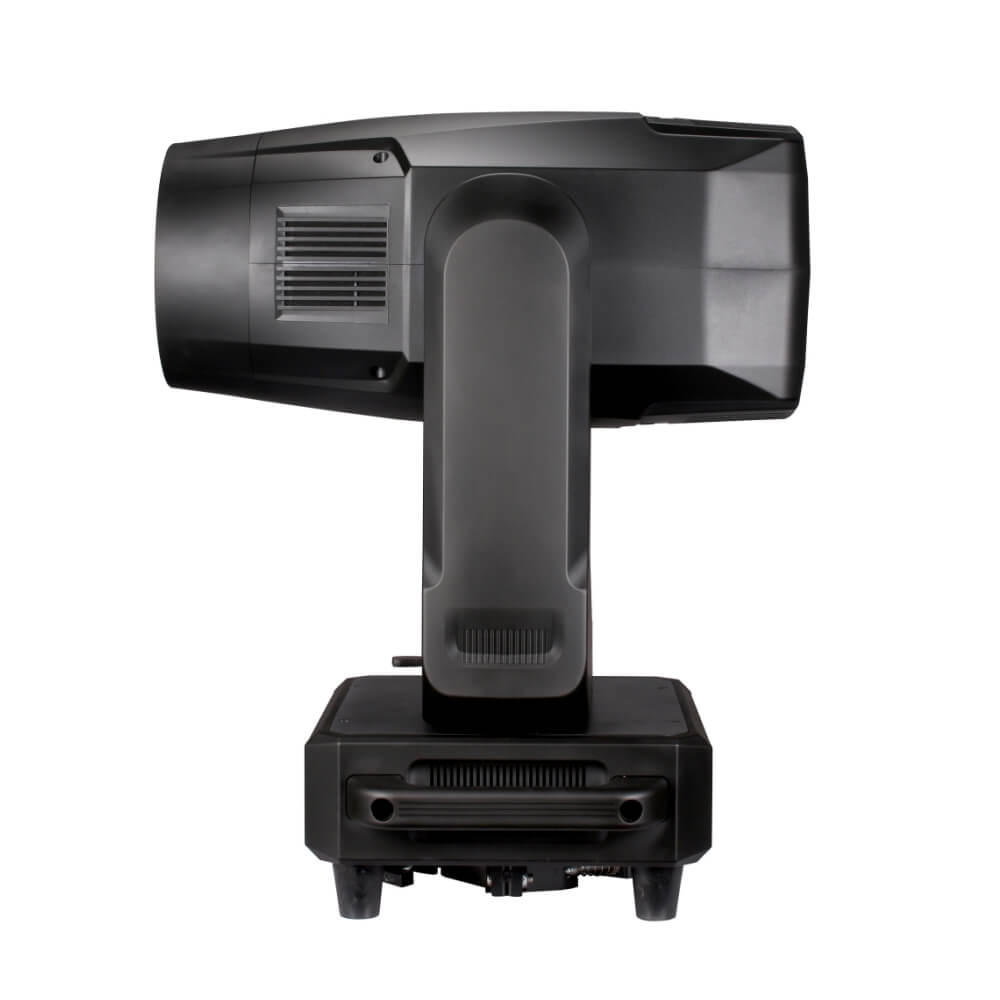

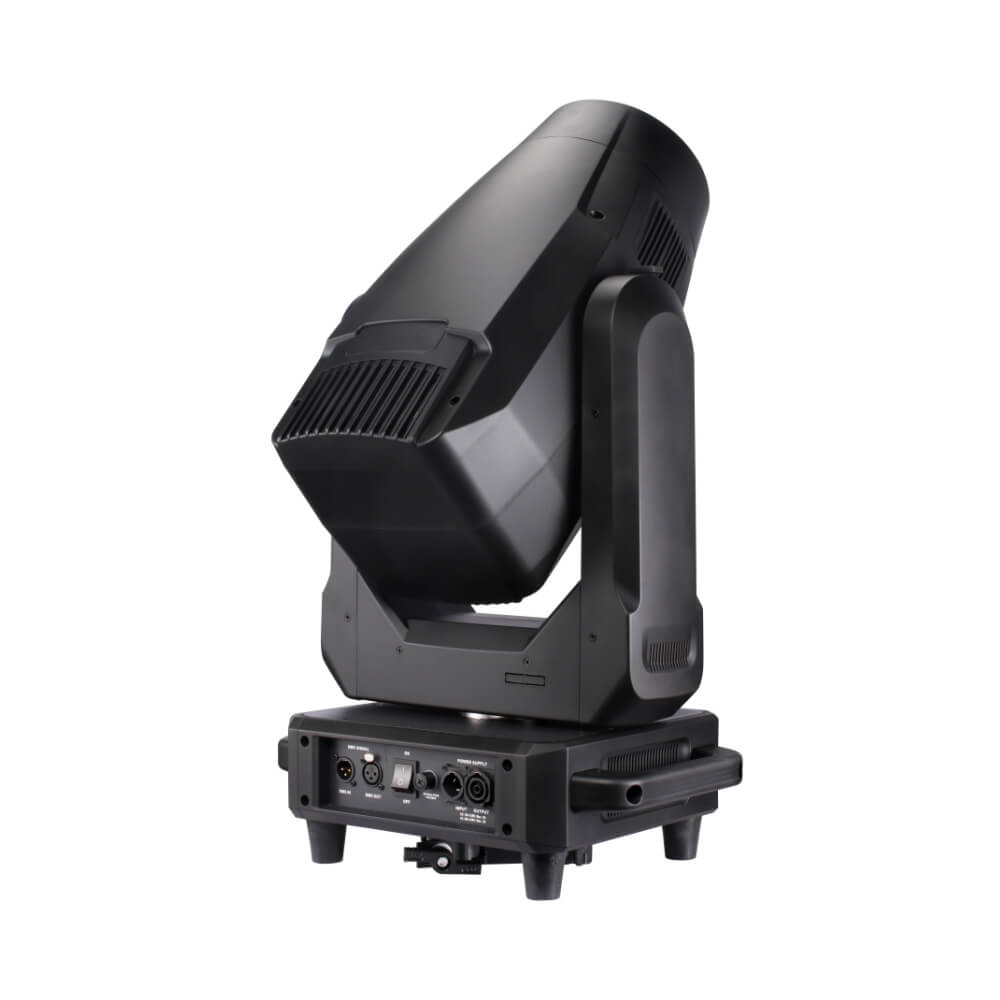

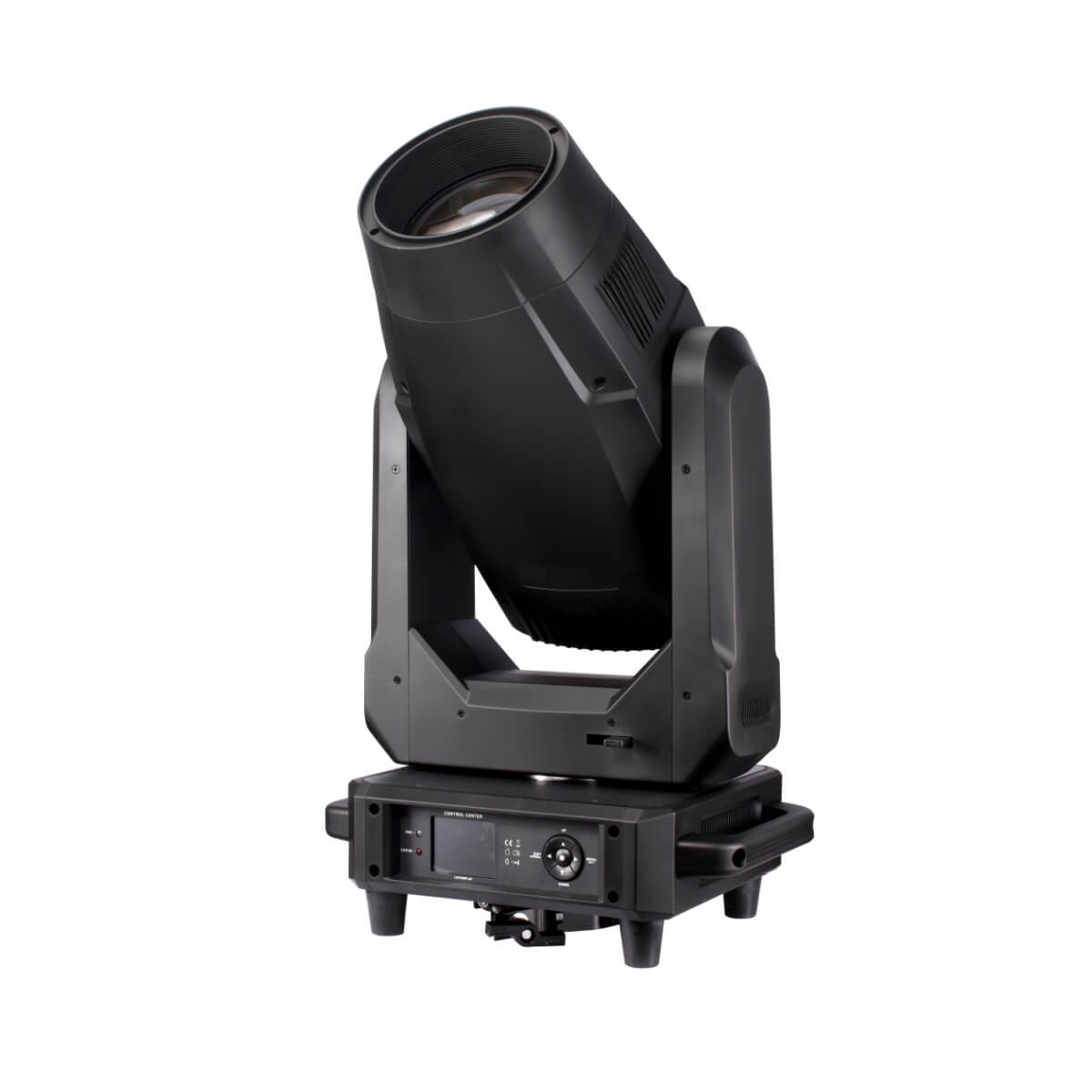

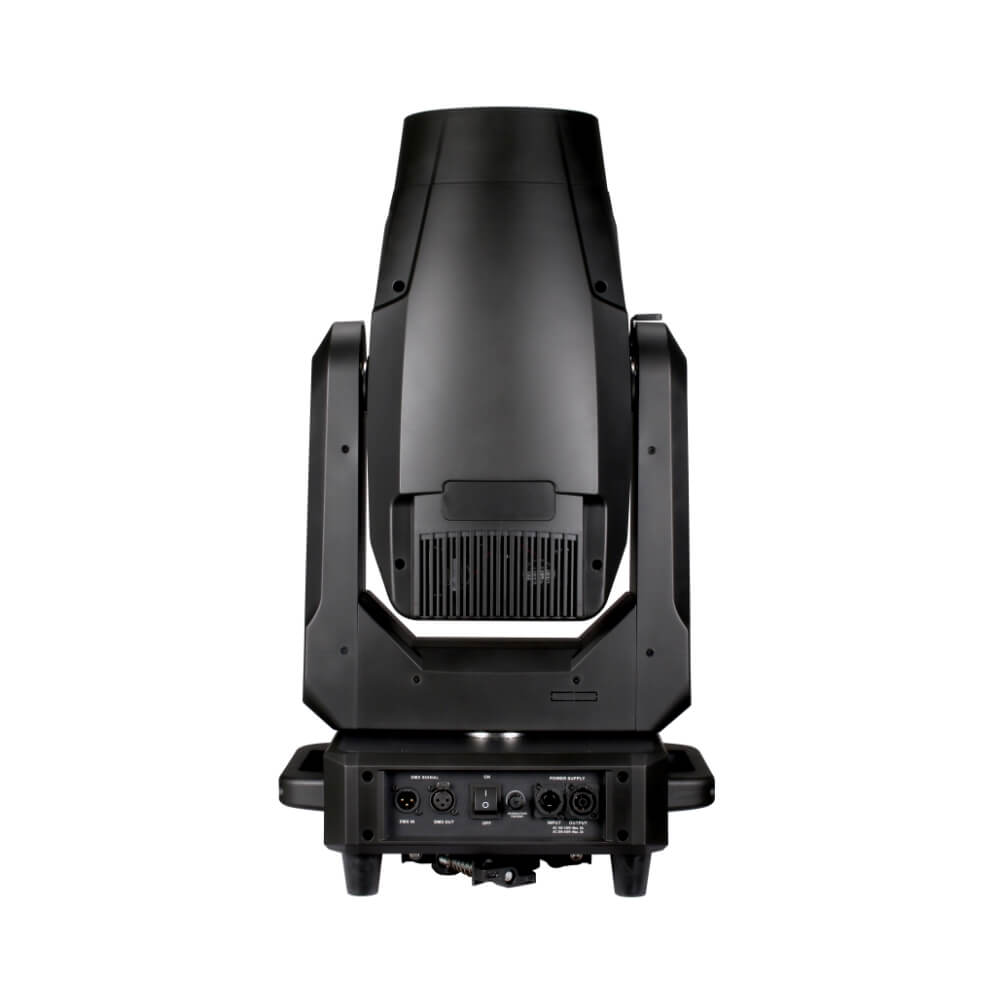

LED Beam 600W with CMY
Beam Spot Wash Light with CMY CTO
- Color: 8 Colors+White light, half color function CMY+CTO
- Shutter: 0-30HZ
- Beam Angle: 3-45°
Product Details
| Power | |
| AC Power | 100-240V AC, 50/60 Hz |
| Rated Power | 800W@220V |
| Optics | |
| Lamp | 500W LED |
| Rated life | 20000h |
| LUX | 5m 168000lm |
| Beam angle | 3°~45° |
| Effects | |
| Horizontal scanning | 540° |
| Vertical scanning | 270° |
| Shutter | 0~30HZ |
| dimming | 0-100% coarse and fine control |
| Color | 8 Colors+White light, half color function CMY+CTO |
| Fixed Gobo | 12 fixed +white light |
| Rotation Gobo | 7 glass gobo ,each glass gobo can be independent positive and negative rotation |
| Prism System | 4 prism and 8 prism, each prism can be independent positive and negative direction |
| Focus | DMX linear adjustment |
| Macro function | console reset function,self-walk mode,master-slave mode |
| Control | |
| Control and Programming | DMX512,With RDM function,software can be upgraded online,dial the address code |
| DMX channels | 22CH/26CH |
| Physical characteristics | |
| Protection Rating | IP20 |
| Housing | high temperature resistant flame |
| Retardant | plastic |
| AC Power in/thru | Neutrik PowerCon |
| DMX data in/out | 3-pin locking XLR |
| Weight | 23.5kg |
| ambient Temperature | -20℃~40℃(-4°F~104°F) |
| Lamp size | 383x274x668mm |
| Package size | 750x360x470mm |
