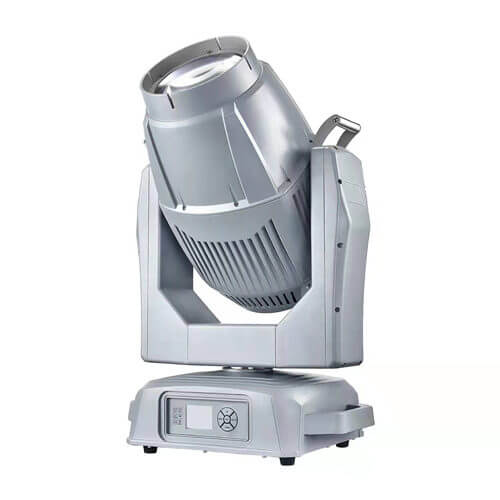

20R 480W
Beam Moving Head Lights
- Lamp : OSRAM 480W
- Voltage : AC110-240V/50-60Hz
- Max Power : 680W
- IP rating : IP20
- Color wheel : 13colors+open
- Gobo Wheel : 13 fixed gobos+open
Product Details
| Lamp | 480W |
| Voltage | AC110-240V/50-60Hz |
| Lamp Hours | 2000hrs |
| Ballast | Electronic ballast |
| Max Power | 680W |
| Power In/Out | Power Connector in/out |
| Data in/out | 3/5-pin XLR |
| Beam Angle | 2 ° |
| IP rating | IP20 |
| Lens diameter | 185mm |
| Protocols | DMX512, RDM |
| Channel mode | 16/20 DMX512 Channel |
| Pan/Tilt | 540°/270°,8/16 bit resolution |
| Fixation | Tilt lock |
| Correction | Automatic Pan/Tilt position correction |
| Color wheel | 13colors+open |
| Gobo Wheel | 13 fixed gobos+open |
| Thickness | 1mm |
| Prism | 8 facet prism; 8+16 facet prism |
| Dimming | 0-100% linear dimming |
| Strobe | 0.5-14 t/s |
| Effects | frost, rainbow |
