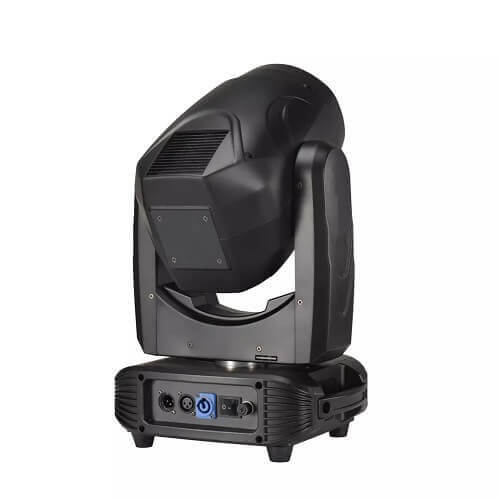

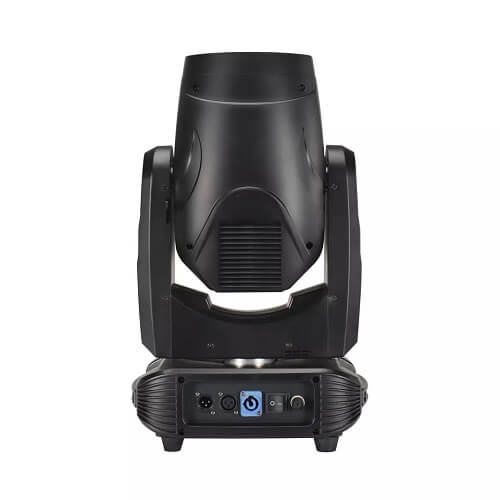

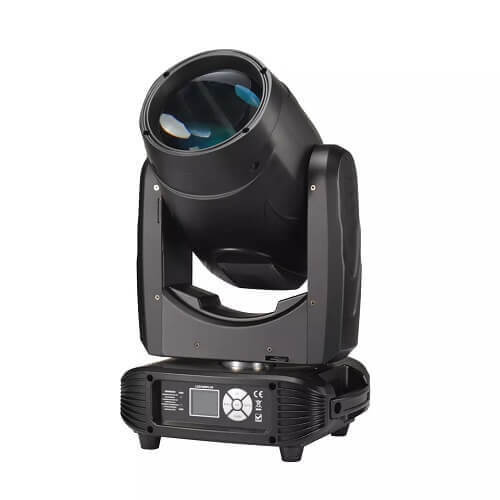

7R Plus 230W
High quality stage dj club lighting
- Working Time (hours) : 10000
- Color Temperature(CCT) : 6000K (Daylight Alert)
- Input Voltage(V) : AC100V-240V 50/60Hz
- IP Rating : IP33
- Lamp Luminous Flux(lm) : 5000
- Lamp source : 230W 7R beam
Product Details
Products Description
| Lamp Source | Platinum 230W(JT-R230B) Platinum 250W(JT-R250B) Osram lamp burner 240W(JT-R260B) Osram lamp burner 260W(JT-R280B) |
| Power Input | 100-240V, 50/60Hz |
| Power Dissipation | 400W |
| Channel mode | 18 DMX512 Channel |
| Pan scan | 540°(16bit) Electric correction |
| Tilt scan | 270° (16bit) Electric correction |

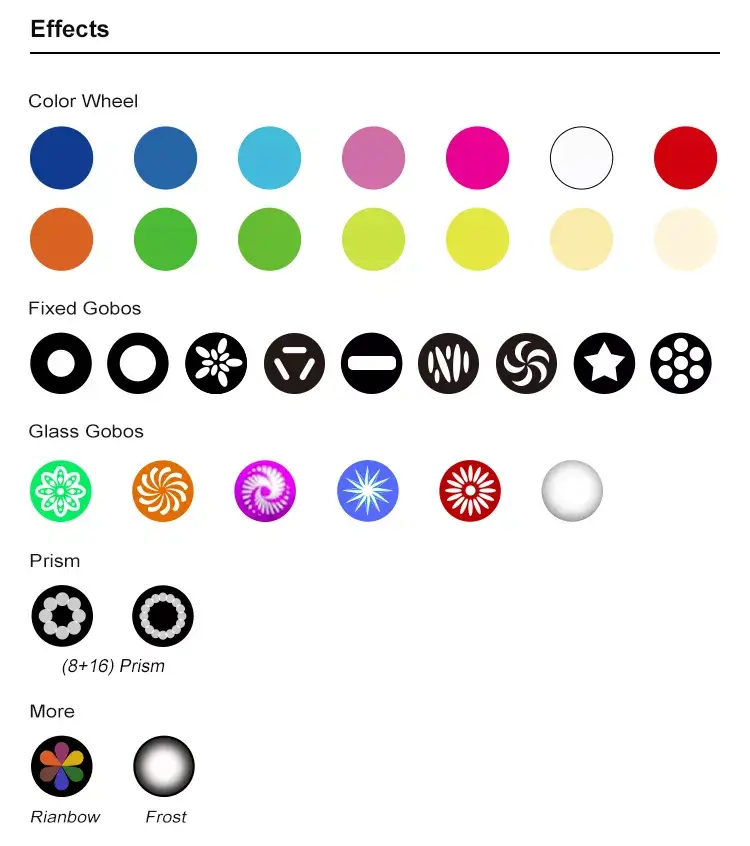

| Color wheel | 14 colors + white, and seven color effect |
| Gobo wheel | 14 gobos(8 fixed gobos + 5 glass gobos + white) |
| Effect Wheel | 8 prism/8+16prism |
| Dimming | 0-100% mechanical dimming, mechanical dimming and free dimming available |
| Macro | Strobe macro control available |
| Beam angle | 2° |
| IP level | IP20 |

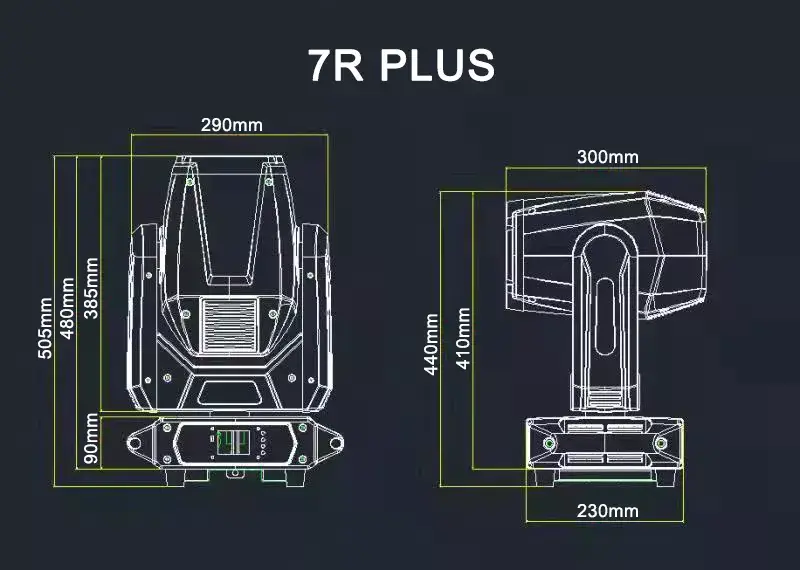

| Product Size | 310×230×500mm |
| Net weight | 14.5KG |
| Packing Size | 535X375X405mm(carton size) |
| Gross weight | 15KG(carton size) |
| Packing Size | 660X440X680mm(flight case size) |
| Gross weight | 47.5KG(flight case size) |
