10R 260W
Beam Moving Head Light
- Lamp : OSRAM 240W
- Lamp Hours : 2000hrs
- Voltage : AC110-240V/50-60Hz
- Max Power : 450W
- Protocols : DMX512, RDM
- Channel Mode : 18 DMX512 Channel
Product Details
Product Paramenters
| Lamp | 240W |
| Lamp Hours | 2000hrs |
| Voltage | AC110-240V/50-60Hz |
| Ballast | Electronic ballast |
| Max Power | 450W |
| Power In/Out | Power Connector in/out |
| Data in/out | 3-pin XLR |
| Beam Angle | 1.8 ° |
| IP Rating | IP 20 |
| Lens Diameter | 145mm |
| Protocols | DMX512, RDM |
| Channel Mode | 18 DMX512 Channel |
| Pan/Tilt | 540°/270°,8/16 bit resolution |
| Fixation | Tilt lock |
| Correction | Automatic Pan/Tilt position correction |
| Color Wheel | 14 colors+open, with uv |
| Gobo Wheel | 8 fixed gobos+5 glass gobos+open |
| Thickness | 1mm |
| Prism | 6 prisms: 8 facet prism; 16 facet prism; 8+16+24 facet prism; 6+12 facet prism; 2 linear prisms |
| Dimming | 0-100% linear dimming |
| Strobe | 0.5-14 t/s |
| Effects | frost, water-flow, rainbow |
| Product Size | 310x210x520mm |
| Net Weight | 16kg |
| Gross Weight | 19.5kg |
| Package Size | 470x400x580mm |
| Flight Case size | 730x450x720mm(2in1) |
| Gross weight | 57kg(with 2in1 flight case) |
Products Description

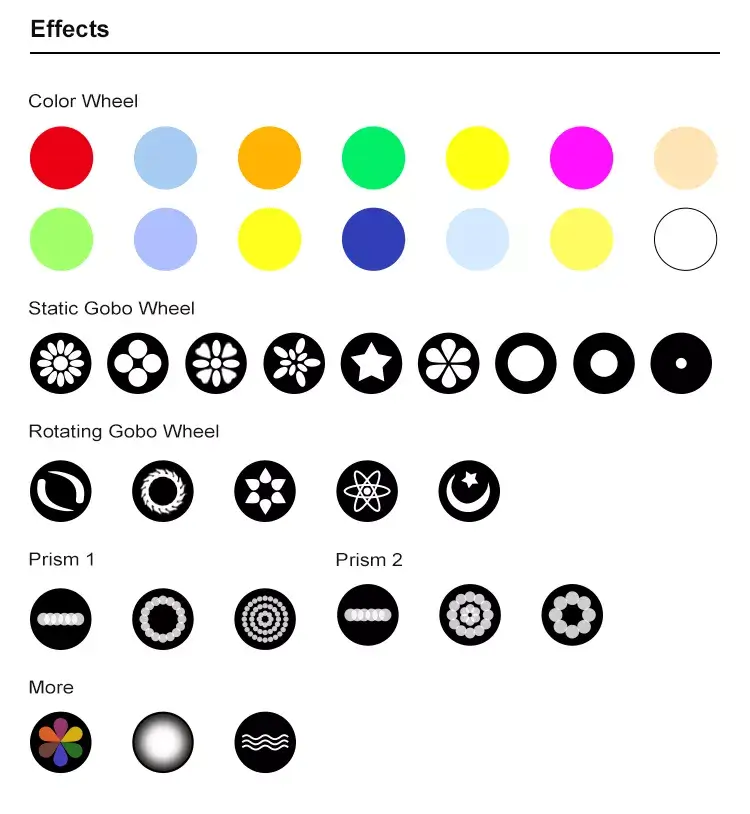

Effects
