Ballast For Moving Head Light 230W

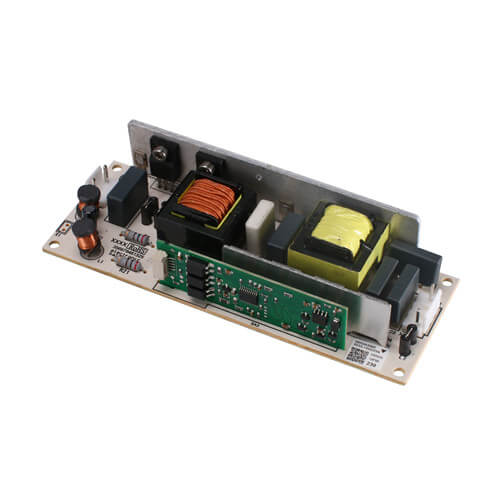

Ballast for 230W Moving Head - White PCB - 230W Moving Beam Light Ballast Power Supply for MSD Platinum Stage Lamp
- Certification : CE
Product Details
This product is a 230W electronic ballast used to drive 230W high pressure gas discharge lamps.
Ballast main function:
The AC lamp lights up.
Lamp current and output power control to keep the lamp operating within specification.
Provides a communication interface through which users can turn on, off and output power selection (compatible with O****, P****** signal formats).
Ballast is an AC ballast with 250~430V DC input and 184~230W output power. It can be used for ON/OFF control and power saving mode through the control signal connection terminal (the control circuit side board is a standard 5-pin SM05B-GHS-TB socket). operation (output 80% power).
